| 产品特性
i：-40~85℃ e：-40~125℃ s/m：-55 ~ 125℃ |
性能规格(at TA=+25℃)
| 型号 | 输入电压范围(VDC) | 输出电流(A) | 输出 | 效率(%) | ||
| 输出电压(VO1~VO4)(VDC) | 调整率 | |||||
| 线性(%) | 负载(%) | |||||
| PGN8644 | 4~14 | 4 | 0.6~5.5 | ±0.2 | ±1 | 92 |

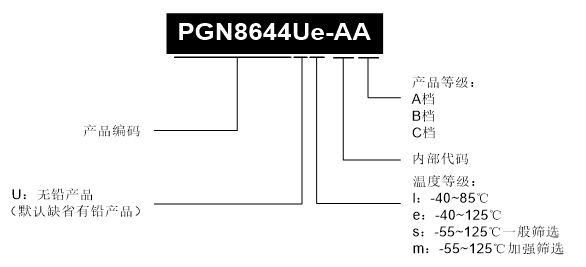

产品命名规则
| 名称 | 温度等级 | 封装类型 | 焊料分类 | 湿度敏感等级(MSL) | 温度范围 |
| PGN8644i-AA | i | BGA | 有铅 | 3 | -40~85℃ |
| PGN8644i-AB | i | BGA | 有铅 | 3 | -40~85℃ |
| PGN8644i-AC | i | BGA | 有铅 | 3 | -40~85℃ |
| PGN8644e-AA | e | BGA | 有铅 | 3 | -40~125℃ |
| PGN8644e-AB | e | BGA | 有铅 | 3 | -40~125℃ |
| PGN8644e-AC | e | BGA | 有铅 | 3 | -40~125℃ |
| PGN8644s-AA | s | BGA | 有铅 | 3 | -55~125℃ |
| PGN8644s-AB | s | BGA | 有铅 | 3 | -55~125℃ |
| PGN8644s-AC | s | BGA | 有铅 | 3 | -55~125℃ |
| PGN8644Ui-AA | i | BGA | 无铅 | 3 | -40~85℃ |
| PGN8644Ui-AB | i | BGA | 无铅 | 3 | -40~85℃ |
| PGN8644Ui-AC | i | BGA | 无铅 | 3 | -40~85℃ |
| PGN8644Ue-AA | e | BGA | 无铅 | 3 | -40~125℃ |
| PGN8644Ue-AB | e | BGA | 无铅 | 3 | -40~125℃ |
| PGN8644Ue-AC | e | BGA | 无铅 | 3 | -40~125℃ |
| PGN8644Us-AA | s | BGA | 无铅 | 3 | -55~125℃ |
| PGN8644Us-AB | s | BGA | 无铅 | 3 | -55~125℃ |
| PGN8644Us-AC | s | BGA | 无铅 | 3 | -55~125℃ |
